KKB-550X600

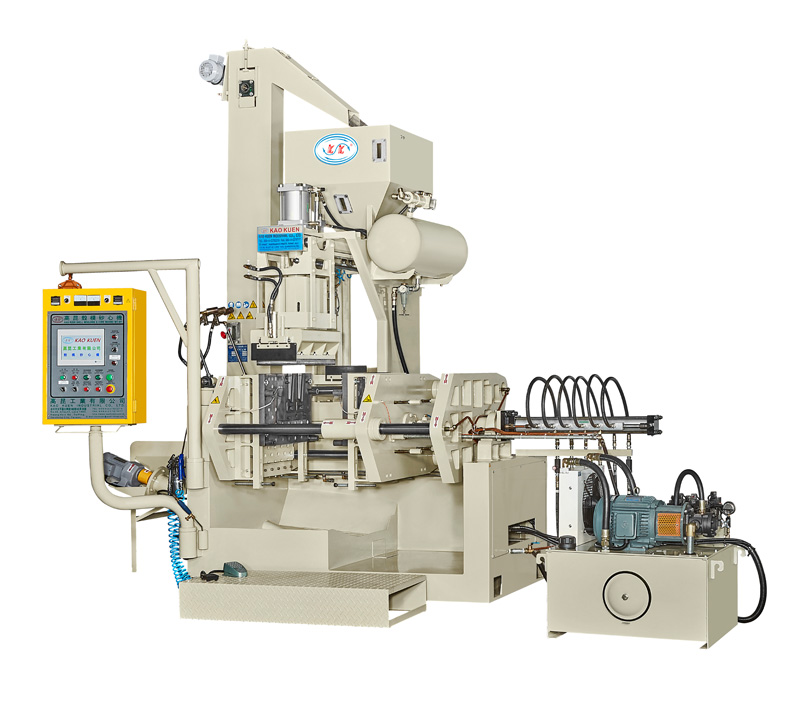

The vertical core making machine rotates the core box 180° to remove excess resin sand, resulting in a hollow core. With a shooting pressure of 1 to 4 kg/cm², the core surface becomes firm and solid. Since the conveyor belt cannot be installed for automatic core removal, the sand core must be taken out manually. For a core making machine with a conveyor, consider the KKF series.

Model	KKB-440	KKB-540	KKB-550	KKB-550x600
Core Box Size (L x H x W)	450 x 400 x 250 mm	500 x 400 x 250 mm	550 x 400 x 300 mm	550 x 600 x 300 mm
Max. Core Size (L x H x W)	370 x 380 x 200 mm	420 x 380 x 200 mm	470 x 380 x 250 mm	470 x 580 x 300 mm
Operation Mode	Manual/Single Cycle/Auto Cycle
Production Speed	40 ~ 70 seconds/cycle, depends on size and shape of products
Heating Type	LPG or Electrical
Max. Blowing Capacity	15-25 kgs	15-25 kgs	15-30 kgs	15-30 kgs
Sand Storage Capacity	200-300 kgs
Operation Pressure	5-6 kgs/cm²
Sand Blowing Pressure	1-4 kgs/cm²
Weight	2600 kgs	2700 kgs	2800 kgs	3200 kgs
Dimension	2010 x 3340 x 2850 mm	2010 x 3340 x 2850 mm	2010 x 3340 x 2850 mm	3350 x 3350 x 3900 mm
