KKE-440

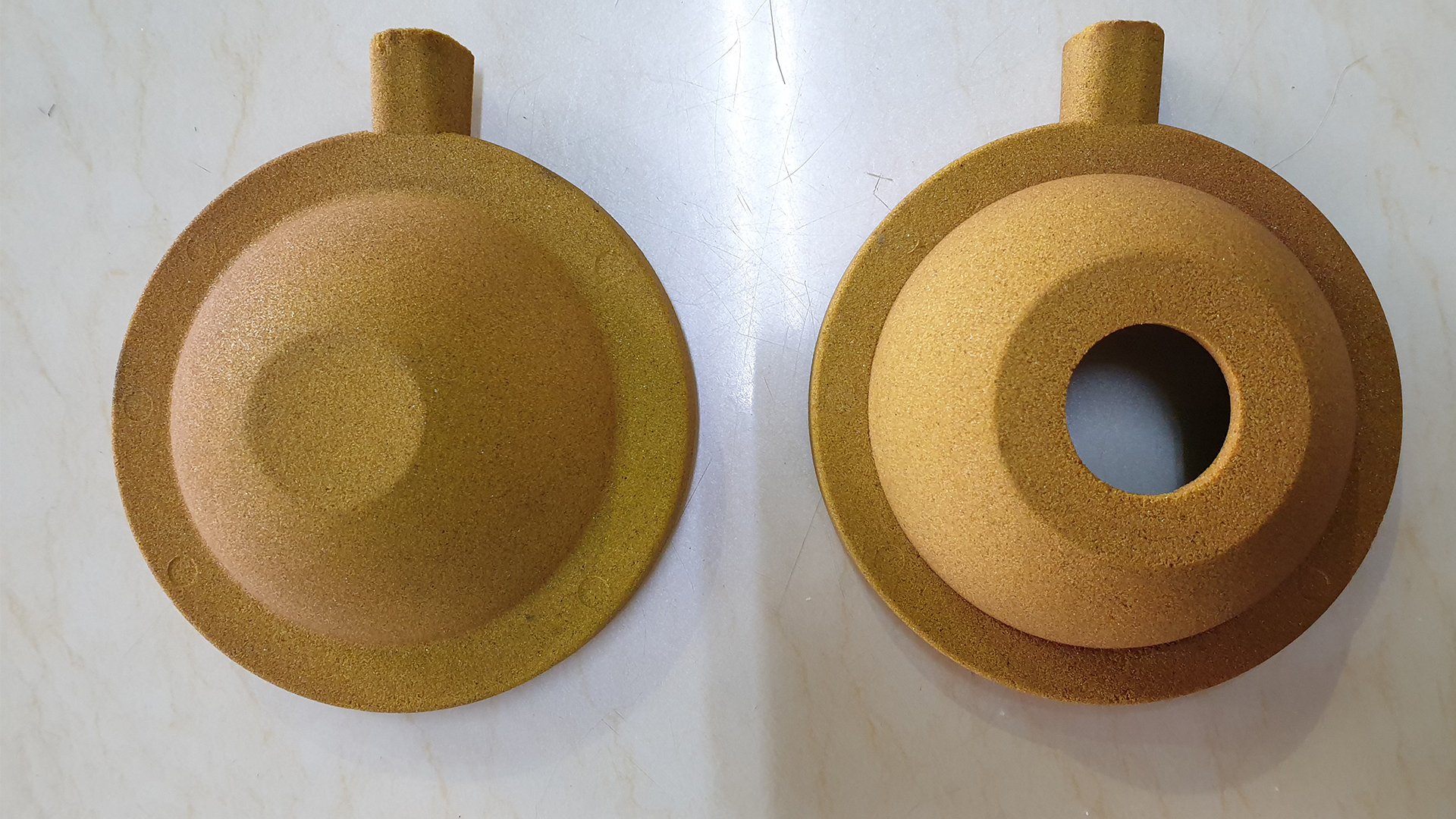

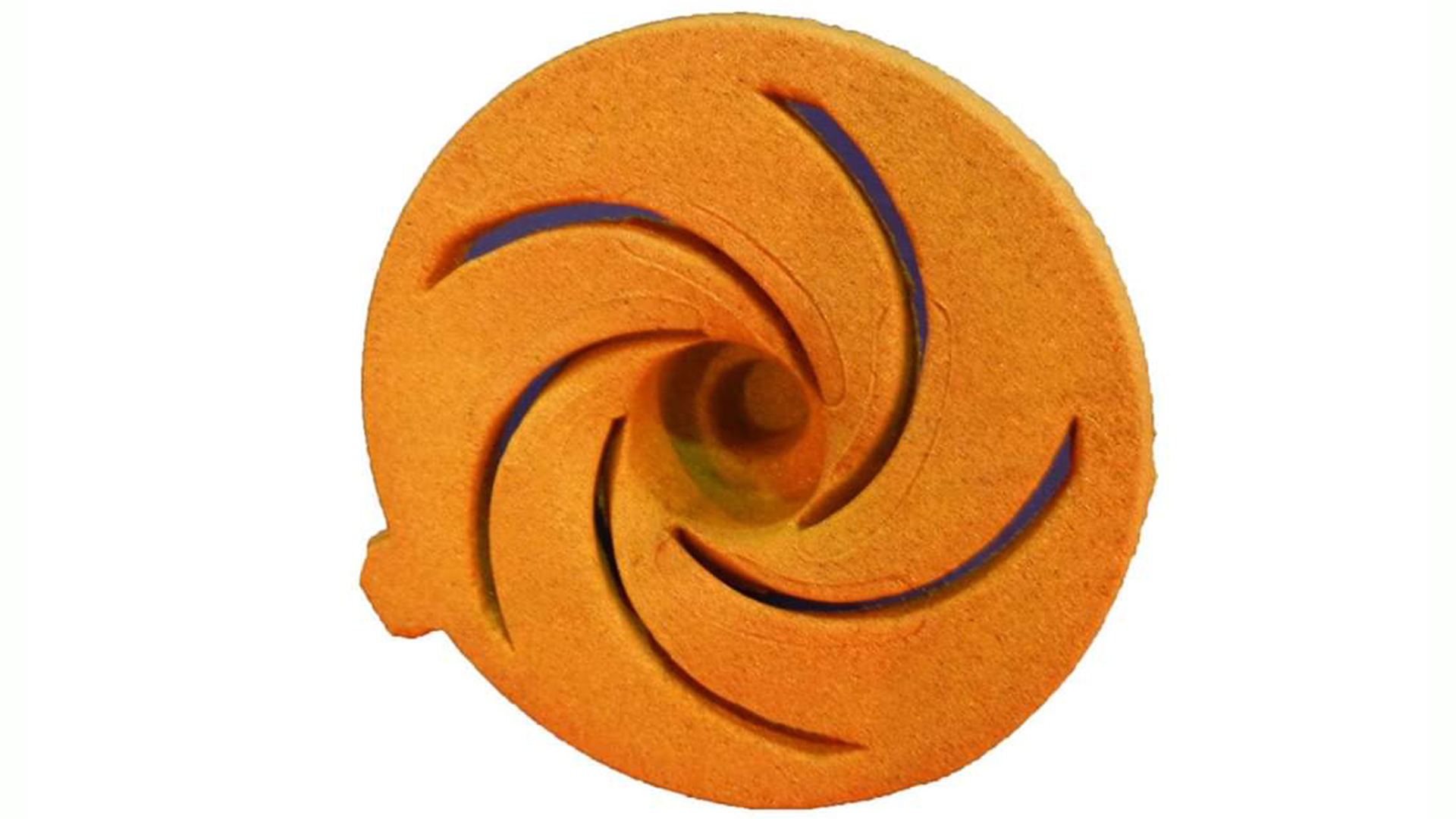

  • Horizontal core shooting machine is suitable to make thin disk type of cores. There is no conveyer for automatic core removal.
Model KKE-430 KKE-530 KKE-440 KKE-540 KKE-550
Core Box Size
(L x H x W)
450 x 300 x 150mm 500 x 300 x 200mm 450 x 400 x 250mm 500 x 400 x 300mm 550 x 400 x 350mm
Max. Core Size
(L x H x W)
370 x 280 x 100mm 420 x 280 x 150mm 370 x 380 x 200mm 420 x 380 x 250mm 470 x 380 x 300mm
Operation Mode Manual/Single Cycle/Auto Cycle
Production Speed 40 ~ 70 seconds/cycle, depends on size and shape of products
Heating Type LPG or Electrical
Max. Blowing Capacity 10 kgs 10-15 kgs 15-20 kgs 15-25 kgs 15-25 kgs
Sand Storage Capacity 200 ~300 kgs
Operation Pressure 5-6 kgs/cm²
Sand Blowing Pressure 1-4 kgs/cm²
Weight 2500 kgs 2800 kgs 3000 kgs 3200 kgs 3500 kgs
Dimension 2560 x 2500 x 3500 mm 2650 x 2500 x 3550 mm 2860 x 2500 x 3600 mm 3100 x 2500 x 3650 mm 3500 x 2500 x 3700 mm
