KKA-540 CE

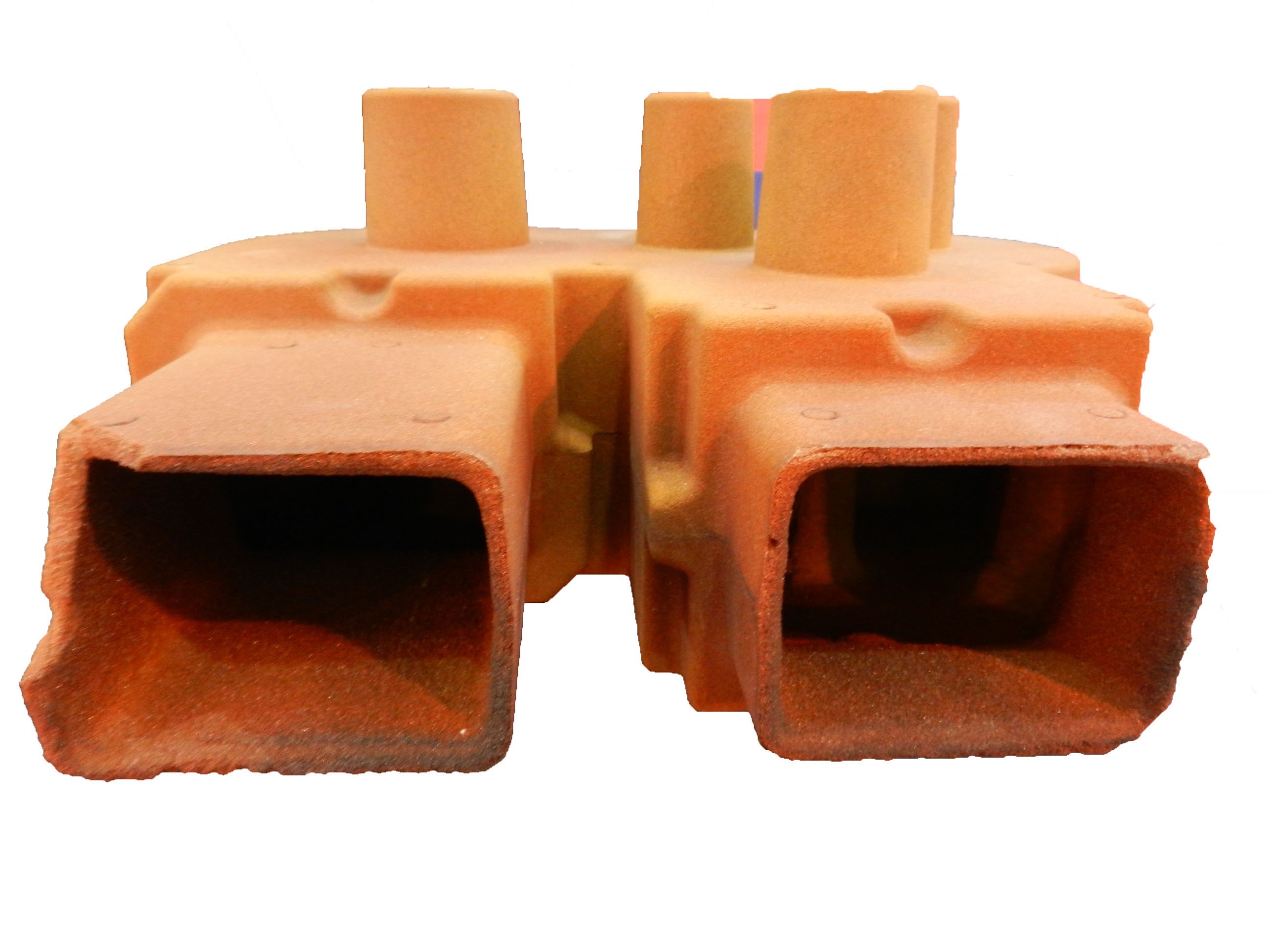

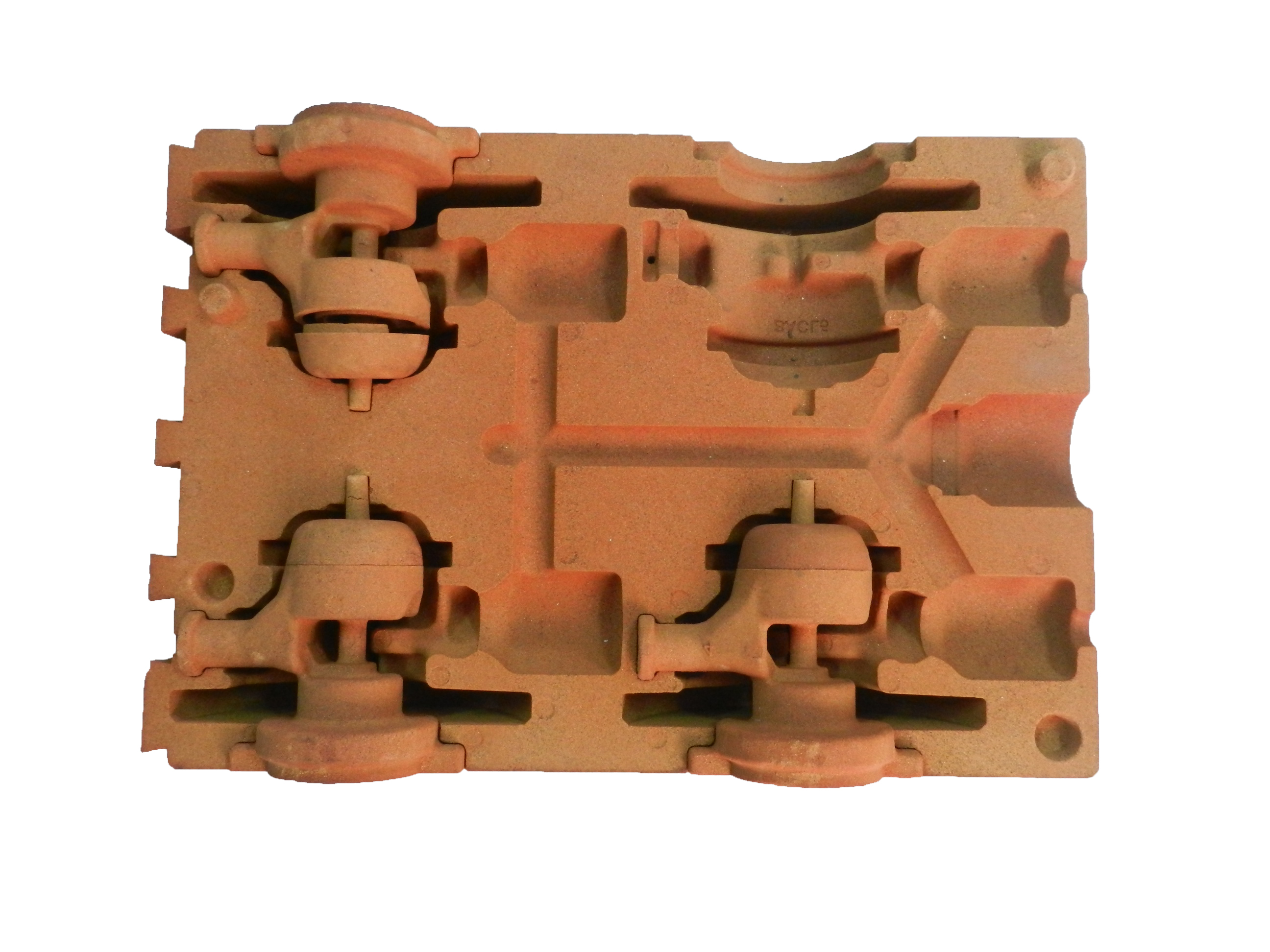

Application: Copper Casting, Aluminum Casting, Cast iron, Stainless Steel Casting, Cast Steel Casting, Steel Casting…and so on.

Model KKA-430 KKA-530 KKA-440 KKA-540 KKA-550 KKA-640 KKA-650
Core Box Size
(LxHxW) mm
450x300x250 500x300x250 450x400x250 500x400x250 550x400x300 600x400x300 650x500x300
Max. Core Size
(LxHxW) mm
370x280x200 420x280x200 370x380x200 420x380x200 470x380x250 520x380x300 570x480x300
Operation Mode Manual/Single Cycle/Auto Cycle
Production Speed 40 ~ 70 seconds/cycle, depends on size and shape of products
Heating Type LPG or Electrical
Max. Blowing Capacity 10-20 kgs 15-25 kgs 15-25 kgs 15-25 kgs 15-30 kgs 15-30 kgs 15-30 kgs
Sand Storage Capacity 200-300 kgs
Operation Pressure 5-6 kgs/cm²
Sand Blowing Pressure 1-4 kgs/cm²
Weight 2500 kgs 2600 kgs 2600 kgs 3000 kgs 3100 kgs 3200 kgs 3300 kgs
Dimension(m) 2.1x3.5x3.1 2.1x3.5x3.1 2.1x3.5x3.1 2.1x3.5x3.1 2.3x3.6x3.2 2.5x3.7x3.3 2.7x3.8x3.4
